1.1.1
CRBC-Kaden Joint Venture (hereafter
“CRBC-Kaden JV”) is commissioned by the Highways Department (HyD) as the Main Contractor of the Contract No. HY/2013/12 – Northern Connection Toll Plaza and
Tunnel Section ((hereafter “the Contract”) and this Contract is part of the Tuen Mun – Chek
Lap Kok Link (TM-CLK Link Project). TM-CLK Link Project is a Designated
Project under Environmental Permit number EP-354/2009/D issued on 13 March 2015. The layout
Plan of the Project and the Contract are showed in Appendix A and B respectively.
1.1.2
The construction works
of the Contract mainly include:-
a.
construction of an approximately 5.4 hectares
toll plaza and an associated footbridge;
b.
construction of associated carriageways
including approximately 0.74 kilometre land viaducts,
and an approximately 230 metres vehicular underpass
to connect the toll plaza and the roundabout at Lung Mun
Road/Lung Fu Road;
c.
site formation for the construction of the
toll plaza, including associated slope works and natural terrain hazard
mitigation measures;
d.
modification and realignment of the existing
Lung Mun Road and Lung Fu Road; and
e.
associated
waterworks, drainage, sewerage and landscaping works, etc..
1.1.3

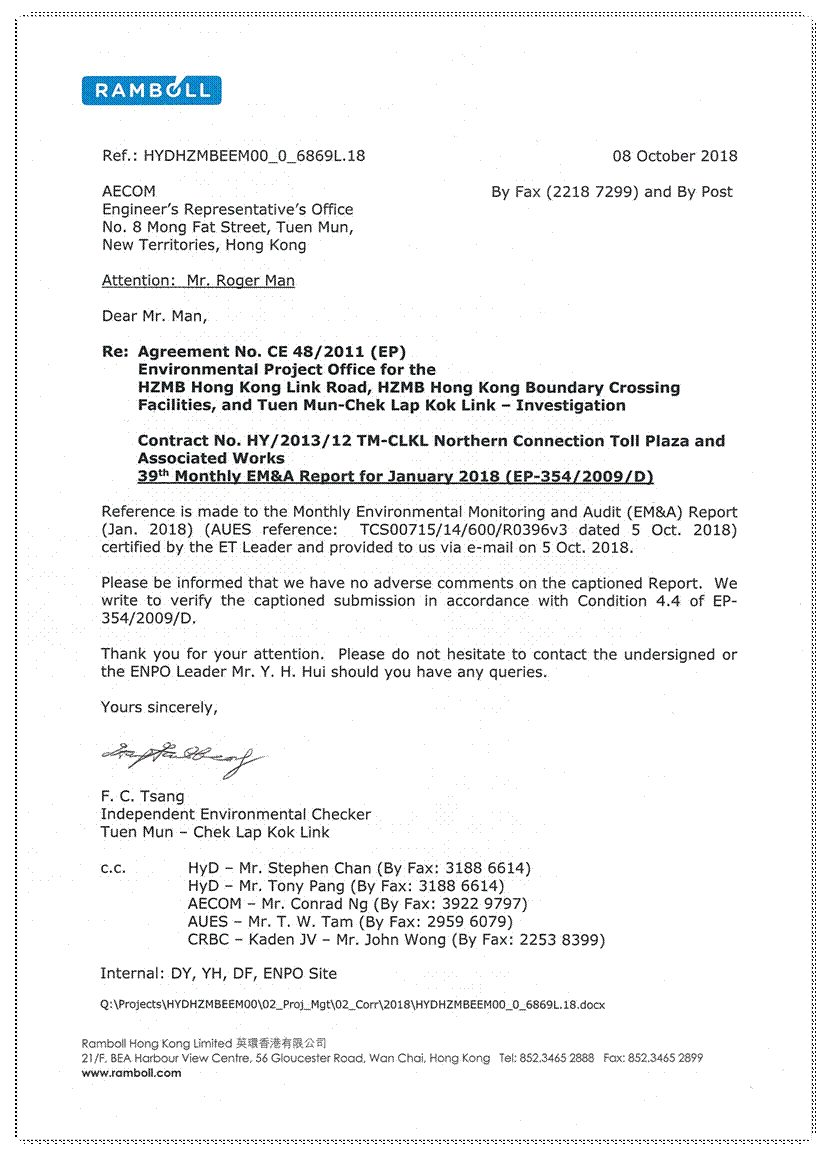

This is 39th monthly
EM&A report presenting the monitoring results and inspection findings for period from 1 to 31 January 2018.
1.2.1
The Monthly Environmental Monitoring and
Audit (EM&A) Report is structured into the following sections:-
Section 1 Introduction
Section 2 Contract Organization
and Construction Progress and Environmental Submissions
Section 3 Summary of Impact
Monitoring Requirements under the Contract
Section 4 Air Quality Monitoring
Section 5 Ecology Monitoring
Section 6 Cultural Heritage
Section 7 Landscape and Visual
Section 8 Landfill gas hazard Monitoring
Section 9 Waste Management
Section 10 Inspections and Audit
Section 11 Environmental Complaints and
Non-Compliance
Section 12 Implementation Status of Mitigation
Measures
Section 13 Conclusions and Recommendations
2.1.1
The Contract organization and contact details
of key personnel are shown in Appendix C.
2.2.1
In the Reporting Period, the major
construction activity conducted under the Contract is summarized in below. The three-months rolling programme of
the Contract is enclosed in Appendix D.
Ÿ
Instrumentation and
Monitoring;
Ÿ
Site Formation –
Earthwork at 5SE-D/C170; surface drainage on Slope C, D & E and Portion H;
Ÿ
Parapet construction for
Retaining Structure RW_A and Bridge G2;
Ÿ
Temporary Traffic
Arrangement at Lung Mun Road and Lung Fu Road;
Ÿ
Toll Collector Subway
& Associated Works;
Ÿ
Toll Booth Canopy Construction;
Ÿ
Road pavement works at
+19mPD platform ;
Ÿ
Bridge G1C and H1C by Formtraveller at Portion F;
Ÿ
Bridge G1b at Portion F;
Ÿ
Vehicular Underpass –
Cable Trough construction and partition wall construction;
Ÿ
Retaining Structure TP_G
at Portion H;
Ÿ
Excavation and lateral
Support of Construction of Retaining Wall TP_G;
Ÿ
Construction of Storage
Area at Retaining Wall B
2.3
Summary of Environmental Submissions
2.3.1
The environmental submissions under the EP
requirement had been submitted to the EPD and they are listed in below:
Ÿ
Monitoring Plan on Construction Dust
(submission refer to Contract HY/2012/08)
Ÿ
Landscape and Visual Plan (not yet endorsed by EPD)
Ÿ
Waste Management Plan (endorsed by EPD on 16 March 2015)
Ÿ
Baseline Monitoring Report (not yet endorsed
by EPD)
2.3.2
Summary of environmental
permits, licenses and notifications for the Contract is presented in Table 2-1.
Table 2-1 Status of Environmental
Licenses and Permits of the Contract
|
No.
|
Type of Permit/
License
|
Reference/
License No.
|
Date of Issue
|
Date of Expiry
|
|
1
|
Air pollution
Control (Construction Dust) Regulation
|
377719
|
06-08-2014
|
N/A
|
|
2
|
Chemical Waste
Producer Registration - Waste Producers Number
|
5117422C389301
|
03-09-2014
|
N/A
|
|
3
|
Water Pollution Control Ordinance -Variation of Effluent Discharge
License
|
WT00023973-2016
|
25-10-2017
|
30-09-2019
|
|
4
|
Waste Disposal
Regulation - Billing Account for Disposal of Construction Waste
|
7020460
|
01-08-2014
|
N/A
|
|
5
|
Extend CNP for Flasework Erection
|
GW-RW0563-17
|
26-10-2017
|
24-02-2018
|
|
6
|
Extend CNP for
Multiple Task
|
GW-RW0605-17
|
25-11-2017
|
24-05-2018
|
|
7
|
Extent CNP for
Tunnel Works
|
GW-RW0567-17
|
26-10-2017
|
22-05-2018
|
|
8
|
CNP for Portion H
|
GW-RW0568-17
|
26-10-2017
|
22-05-2018
|
|
9
|
CNP for Road
Paving Works
|
GW-RW0561-17
|
26-10-2017
|
01-02-2018
|
3.1.1
The major construction
activities under the Contract are land-based and no marine work will be
involved. In accordance with the
Project EM&A Manual requirements, the environmental aspects under the
Contract shall be included air quality, ecological, cultural heritage, landscape
and visual, landfill gas and site inspection during
construction period. In addition,
audit of the contractor’s implementation of the construction noise and
land-based water quality pollution control measures are also required for the
Contract.
3.1.2
A summary of construction phase EM&A
requirements are presented in the
sub-sections below.
3.2.1
The construction phase air quality monitoring
shall cover the following parameters:
•
1-hour TSP; and
•
24-hour TSP
3.3.1
The air quality monitoring stations for impact monitoring are listed in Table 3-1 and illustrated in Appendix E.
Table 3-1 Air
Quality Monitoring Stations under the Contract
|
ID
|
Location
|
Air monitoring station Description
|
|
ASR1
|
Tuen Mun
Fireboat Station
|
EM&A Manual
|
|
ASR5
|
Pillar Point Fire Station
|
EM&A Manual
|
|
AQMS1
|
Previous River Trade Golf
|
Enhanced TSP Level under EP
condition 2.4
|
|
ASR6
|
Butterfly Beach Laundry
|
Enhanced TSP Level under EP
condition 2.4
|
|
ASR10
|
Butterfly Beach Park
|
Enhanced TSP Level under EP
condition 2.4
|
3.4.1
As per Condition 2.4 of
the EP of TM-CLKL, an enhanced monitoring plan on TSP level at Tuen Mun (“the Enhanced TSP
Monitoring Plan”) is required to be submitted to the DEP for approval at least
1 month before the commencement of construction of the Project. Details of the Enhanced TSP Monitoring
Plan under Contract No. HY/2012/08 could be found from the project website. The
air quality monitoring work under this Contract will follow the monitoring
requirement of enhanced TSP monitoring under the project.
3.4.2
The air quality
monitoring requirements for the Contract is summarized in Table 3-2.
Table 3-2 Enhanced TSP Monitoring Plan –
Construction Phase
|
Condition
|
Monitoring
Parameter
|
Monitoring
Location
|
Frequency
|
Monitoring Requirement
|
|
General
|
1-hour TSP
|
ASR1, ASR5, AQMS1, ASR6, ASR10
|
3 times per day every six days
|
Throughout the Northern Connection, toll plaza and tunnel buildings
construction works
|
|
24-hour TSP
|
ASR1, ASR5, AQMS1, ASR6, ASR10
|
Daily every six days
|
|
Special
|
1-hour TSP
|
ASR1, ASR5, AQMS1, ASR6, ASR10
|
3 times per day every three days
|
Northern Connection
During excavation works for launching shaft, excavation work for Cut and
Cover Tunnel and Cut and Cover Tunnel Construction
Toll Plaza
During excavation, slope works, construction of road and superstructures
and wind erosion from open sites and stockpiling areas
Tunnel Buildings
During excavation, foundation works, construction of superstructures and
wind erosion from open sites and stockpiling areas
|
|
24-hour TSP
|
ASR1, ASR5, AQMS1, ASR6, ASR10
|
Daily every three days
|
3.5.1
The 24-hour and 1-hour TSP levels shall be
measured by following the standard high volume sampling method as set out in
the Title 40 of the Code of Federal
Regulations, Chapter 1 (Part 50), Appendix B.
3.5.2
A high volume sampler in
compliance with the following specifications shall be used for carrying out the
1-hr and 24-hr TSP monitoring:
(i)
0.6-1.7 m3/min (20-60
SCFM) adjustable flow range;
(ii)
equipped with a
timing/control device with +/- 5 minutes accuracy for 24 hours operation;
(iii)
installed with
elapsed-time meter with +/- 2 minutes accuracy for 24 hours operation;
(iv)
capable of providing a
minimum exposed area of 406 cm2 (63 in2);
(v)
flow control accuracy:
+/- 2.5% deviation over 24-hr sampling period;
(vi)
equipped with a shelter
to protect the filter and sampler;
(vii)
incorporated with an
electronic mass flow rate controller or other equivalent devices;
(viii) equipped with a flow recorder for continuous monitoring;
(ix)
provided with a peaked
roof inlet;
(x)
equipped with a
manometer;
(xi)
able to hold and seal
the filter paper to the sampler housing in a horizontal position;
(xii)
easy to change the
filter; and
(xiii)
capable of operating continuously for 24-hr period.
3.5.3
Calibration of dust
monitoring equipment shall be conducted by the ET upon installation and in
bi-monthly intervals during construction phase. The transfer standard shall be traceable
to the internationally recognized primary standard and be calibrated annually.
The calibration data shall be properly documented for future reference by
concerned parties, such as the IEC. All the data shall be converted into
standard temperature and pressure condition.
3.5.4
The filter paper of 1-hour and 24-hour TSP measurement shall be determined
by HOKLAS accredited laboratory.
3.5.5
If the ET Leader
proposes to use a direct reading dust meter to measure 1-hr TSP levels on an ad
hoc basis, he shall submit sufficient information to the IEC to prove that the
instrument is capable of achieving a comparable result as that the High Volume
Sampler (HVS) and may be used for the 1-hr sampling. The instrument should also be calibrated
regularly and the 1-hr sampling shall be checked periodically by the HVS to
check the validity and accuracy of the results measured by the direct reading
method.
3.5.6
According to the Project EM&A Manual,
wind data monitoring equipment shall also be provided and set up for logging
wind speed and wind direction near the dust monitoring locations. The equipment installation location
shall be proposed by the ET Leader and agreed
with the IEC. For installation and operation of wind data monitoring equipment, the
following points shall be observed:
(i)
the wind sensors should
be installed on masts at an elevated level 10 m above ground so that they are
clear of obstructions or turbulence caused by the buildings;
(ii)
the wind data should be
captured by a data logger to be down-loaded for processing at least once a
month;
(iii)
the wind data monitoring
equipment should be re-calibrated at least once every six months; and
(iv)
wind direction should be divided into 16 sectors of 22.5 degrees each.
3.6.1
The baseline monitoring
results formed the basis for determining the air quality criteria for the
impact monitoring. The ET shall compare the impact monitoring results with air
quality criteria set up for 24-hour TSP and 1-hour TSP. Based on results of the approved
Baseline Monitoring Report of HyD Contract
HY/2012/08, the Action and Limit Levels for impact dust monitoring are shown in
Tables 3-3.
Table
3-3 Action
and Limit Levels for Impact Air Quality Monitoring
|
Air Quality Monitoring Stations
|
24-hour TSP (μg/m3)
|
1-hour TSP (μg/m3)
|
|
Action Level
|
Limit Level
|
Action Level
|
Limit Level
|
|
ASR1
|
213
|
260
|
331
|
500
|
|
ASR5
|
238
|
260
|
340
|
500
|
|
AQMS1
|
213
|
260
|
335
|
500
|
|
ASR6
|
238
|
260
|
338
|
500
|
|
ASR10
|
214
|
260
|
337
|
500
|
3.6.2
Should non-compliance of the environmental
quality criteria occurs, remedial actions will be triggered according to the
Event and Action Plan which presented in Appendix F.
Noise
3.7.1
The TM-CLKL EIA study stated
that no existing noise sensitive receiver (NSR) was identified within the Study
Area at Tuen Mun. Therefore, no noise monitoring is required
for the construction phase of the Contract.
3.7.2
Regular site inspections
and audits will be carried out during the construction phase in order to
confirm the construction works under the Contract comply with the regulatory
noise requirements.
Water Quality
3.7.3
No marine works will be
undertaken under the Contract. Therefore,
no water quality monitoring is required for the construction phase of the
Contract.
Ecology
3.7.4
No marine works will be
undertaken under the Contract and generated marine ecological impact, no dolphin monitoring
is required for the construction phase of the
Contract.
3.7.5
During construction phase, the ET will
perform Pitcher Plants inspection at least once every week to report the growth
condition (only undertaken at Establishment
period) and protection measures.
Landscape and Visual
3.7.6
Measures to mitigate landscape and visual
impact during construction should be checked and monitored by a Registered
Landscape Architect to ensure compliance with the intended aims of the
mitigation measures in accordance with the EM&A Manual.
Cultural Heritage
3.7.7
Grave G1 as a heritage resource is situated near the proposed
toll plaza in Tuen Mun. Site inspections should be
undertaken at least once per week throughout the construction period to ensure
compliance with the intended aims of recommended mitigation measures.
Landfill Gas
3.7.8
During EIA study,
landfill gas hazards are likely to be generated from the Pillar Point Valley (PPV)
Landfill. Landfill
gas
monitoring is recommended during construction of the
Contract to ensure
the works area is free of landfill gas before the worker entered the concerned
area.
3.8.1
The monitoring schedule
for landscape &visual and landfill gas for the present and next reporting
period are presented in Appendix G.
4.1.1
The air quality impact monitoring and enhanced
Total Suspended Particulates (TSP) level monitoring at five proposed locations are
currently carried out by the ET of Contract HY/2012/08. Sharing of impact air quality monitoring
data between HY/2012/08 and HY/2013/12 is agreed by all relevant parties. The Contract is not required to conduct
its own dust monitoring exercise until the Contract HY/2012/08 ends.
4.2.1
In the Reporting Period, 1-hour and 24-hour
TSP monitoring at the five proposed locations are continued to perform by the
ET of Contract HY/2012/08. Therefore,
no air quality monitoring was conducted by the ET of Contract HY/2013/12. Details information of air quality
monitoring results could be referred to the Monthly EM&A Reports of the
Contract HY /2012 /08 (January
2018).
4.3.1
According to the air quality monitoring
result provided by Contract HY/2012/08, 6 Action Level were recorded
at ASR5 on 13, 16 and 22 January
2018. The summary of air quality exceedance in the Reporting Period is shown
in Table 4-1.
Table 4-1 Summary
of Air Quality Monitoring Exceedance
|
Date of Exceedance
|
Monitoring Station
|
Air Quality
Parameter
|
Result
|
Exceed
|
|
13 January 2018
|
ASR5
|
1Hr TSP
|
345 µg/m3
|
Action Level
|
|
16 January 2018
|
ASR5
|
1Hr TSP
|
396 µg/m3
|
Action Level
|
|
16 January 2018
|
ASR5
|
1Hr TSP
|
384 µg/m3
|
Action Level
|
|
16 January 2018
|
ASR5
|
1Hr TSP
|
345 µg/m3
|
Action Level
|
|
22 January 2018
|
ASR5
|
1Hr TSP
|
363 µg/m3
|
Action Level
|
|
22 January 2018
|
ASR5
|
1Hr TSP
|
380 µg/m3
|
Action Level
|
4.4.1
Investigation
reports (IR) for those exceedances on 13, 16 and 22 January 2018 prepared by
the ET were endorsed by IEC and the IRs revealed that the exceedances were not
project related. The completed investigation reports are included in Appendix J.
4.4.2
In last Reporting Period, the investigation reports (IR) of the exceedance of 24-hour on 29 December 2017 was submitted by ET. After the investigation, it is concluded that the exceedance were not
project related. The IR of the exceedance conducted
by the ET is shown in Appendix J.
5.1.1
According to the
EM&A Manual requirements, regularly
inspection for Pitcher Plants shall be conducted at least once every week to report the protection measure of the Pitcher Plants during construction period.
5.1.2
A total of 181 pitcher
plants were transplanted to final receptor site and the rest of the Pitcher
Plant individuals (certified dead by the specialist) were not transplanted and were
treated as general refuse. All the
transplantation of pitcher plant from the nursery site to final receptor site
was completed on 10th September 2015.
5.2.1
Inspection for the mitigation
measures implementation status of the Pitcher Plant at the final receptor area were
performed on 2nd, 9th, 16th, 23rdand 30th January 2018 by the ET in the
Reporting Period.
5.2.2
Establishment period for the pitcher plants was completed
at the end of September 2016, the join site completion of Establishment period
visit with AFCD was undertaken on 23 September 2016 and the final pitcher plants
report was submitted to AFCD on early December 2016. Therefore
after 23 September 2016, only the integrity of the protection fence was checked
to fulfil the EIA requirement. During each inspection, the protection mitigation measures were
checking at the final receptor area to make sure no site activities was
undertaken inside the protection zone. Besides, no construction activities were observed to be carried
out at the surrounding of the final receptor area. The condition of chain link fence is good
and no repair or maintenance is required.
5.2.3
No matters the completion of Establishment period, the
Contractor should properly maintain the fencing along the receptor area to
avoid disturbance to the pitcher plants under the EIA requirement.
6.1.1
According to the EM&A Manual
requirements, regular inspection for heritage resource, Grave G1, shall be
audited by the ET at least once every week to ensure recommended mitigation
measures implemented during construction period. The aim of the survey is to
prevent any possible damage to the grave and to ensure the proposed mitigation
measures are implemented. The broad
scope of the audit will involve supervision of the following:
Ÿ
Non-contact effects of
the engineering works, such as vibration from pneumatic drills which could cause
damage, such as foundation or wall cracks and loosening of tiles or fixtures;
and
Ÿ
Contact between the historic
structures and equipment and materials associated with the engineering works.
6.1.2
Specifically, the
monitoring programme will entail the following tasks:
Ÿ
The extent of the agreed
works areas should be regularly checked during the construction phase to ensure
the buffer is being maintained; and
Ÿ
Ensure no stockpiling or
equipment storage is affecting the structure.
6.1.3
In the event of non-compliance
the responsibilities of the relevant parties is detailed in the Event/ Action Plan
in Appendix F.
6.2.1
In the Reporting Period,
Grave G1 of inspection was undertaken on 2nd, 9th, 16th, 23rdand 30th January 2018. During these inspections,
buffer zone was maintained between the working area and the Grave. The nearby areas were clean, and no
construction materials or mechanical equipment were stored within or close to
the buffer zone.
6.2.2
Since construction works
very close to buffer zone of the Grave G1, cultural heritage mitigation measures and protection measures as provided by the Contractor, therefore has fully
implemented in accordance with EM&A Manual requirements.
7.1.1
According to EM&A
Manual requirements, monitoring of Contractor’s operations during construction
period to report on Contractor’s compliance should be carried out on weekly
basis. Measure to mitigate landscape and
visual impact during construction should be checked and monitored by a
Registered Landscape Architect to ensure compliance with the intended aims of
the mitigation measures. Moreover, the progress
of the engineering works shall be regularly reviewed on site to identify the
earliest practical opportunities for the landscape works to be undertaken.
7.2.1
In the Reporting Period, site inspection for landscape
and visual mitigation measures was undertaken on 5th, 12th, 19th and 26th January 2018 by the Registered Landscape Architect.
7.2.2
Most of the landscape
works such as planting was not yet commenced, but some transplanting works was commenced on 22 May 2017. The detailed inspection checklists were
provided in Appendix K.
8.1.1
During EIA study,
landfill gas hazards are likely to be generated
from the Pillar Point Valley (PPV) Landfill. Hence, regular landfill
gas monitoring is recommended during construction of the proposed toll plaza.
8.1.2
During construction, a
Safety Officer should be appointed to carry out the monitoring works. The
monitoring frequency and areas to be monitored should be set down prior to
commencement of ground-works either by the Safety Officer or an approved and appropriated
qualified person. The routine
monitoring should be carried out in all excavations, manholes, chambers,
relocation of monitoring wells and any other confined spaces that may have been
created. All measurements in
excavations should be made with the extended monitoring tube located not more
than 10 mm from the exposed ground surface. Monitoring should be performed
properly to make sure that the area is free of landfill gas before any man
enters in the area.
8.1.3
For excavations deeper
than 1m, measurements should be carried out:
Ÿ
at the ground surface
before excavation commences;
Ÿ
immediately before any
worker enters the excavation;
Ÿ
at the beginning of each
working day for the entire period the excavation remains open; and
Ÿ
periodically through the working day
whilst workers are in the excavation.
8.1.4
For excavations between
300mm and 1m deep, measurements should be carried out:
Ÿ
directly after the
excavation has been completed; and
Ÿ
periodically whilst the
excavation remains open
8.1.5
For excavations less
than 300mm deep, monitoring may be omitted, at the discretion of the Safety
Officer (SO) or other appropriately qualified person.
8.1.6
To ensure the accuracy
of the monitoring data, zeroing of the gas analyser
shall be undertaken at the start of each day’s monitoring. As advised by the SO, the gas analyser would be optimally calibrated by the self-test
function to provide the most accurate result. The gas analyser
is calibrated and certified by a laboratory accredited under HOKLAS or any other
international accreditation scheme at yearly basis.
8.1.7
The landfill
consultation zone was divided into 6 monitoring zones. The landfill gas
monitoring zones are summarized in Table 8-1 and the layout plan for the monitoring zone is illustrated in
Appendix E.
Table
8-1 Landfill
Gas Monitoring Zone
|
ID
|
Location
|
Excavation >300mm deep undertaken in this reporting period
|
|
TD1
|
TD1, Retaining Wall A, Grave
G1 and Subway
|
Yes
|
|
RW-B
|
Retaining Wall B
|
No
|
|
RW-F
|
Retaining Wall F
|
No
|
|
S&U
|
Slope and Underpass
|
No
|
|
BW
|
Bridge Works (G2,
H1)
|
No
|
|
LMR
|
Lung Mun
Road
|
No
|
8.2.1
In the Reporting Period, landfill gas monitoring was conducted at the zone TD1 which have excavation works was undertaking. A BIOGAS 5000 gas analyser was
used for the landfill gas monitoring and the valid calibration certificate is
presented in Appendix H.
8.2.2
There were a total of 26 days monitoring were carried by the Safety Officer or an approved and
qualified persons. The results of landfill gas measurement are
summarized in Table 8-2. Moreover, database of monitoring
result and graphical plot are attached in Appendix I.
Table 8-2 Summary of Landfill
Gas Measurement Results
|
Landfill Gas Parameter
|
Action Level
|
Limit Level
|
Detectable
at TD1
|
|
Min
|
Max
|
|
Methane
|
>10% LEL (>0.5% v/v)
|
>20% LEL (>1% v/v)
|
0.1%
|
0.1%
|
|
Oxygen
|
<19%
|
<18%
|
20.8%
|
21.1%
|
|
Carbon Dioxide
|
>0.5%
|
>1.5%
|
0.1%
|
0.2%
|
8.2.3
The measurement results
shown that slightly methane concentration was detected and oxygen concentration
measured was over 19.0 % and Carbon Dioxide was between 0.1% and 0.2 %. No exceedance was triggered and
therefore no corrective action was required accordingly.
9.1.1
Waste management was carried out by an
on-site Environmental Officer or an Environmental Supervisor from time to time.
The effective management of waste arising during the construction phase will be
monitored through the site audit programme. The aims of the waste audit are:
l to ensure
the waste arising from the works are handled, stored, collected, transferred
and disposed of in an environmentally acceptable manner; and
l to encourage the reuse and recycling of material.
9.1.2
In addition to the site inspections, the ET
shall review the documentation procedures prepared by the Waste Coordinator
once a week to ensure proper records are being maintained and procedures
undertaken in accordance with the Waste Management Plan.
9.2.1
All types of waste arising from the
construction work are classified into the following:
l Construction
& Demolition (C&D) Material;
l Chemical
Waste;
l General
Refuse; and
l Excavated
Soil.
9.2.2
The quantities of wastes generated under the
Contract in this Reporting Period are summarized in Tables 9-1 and 9-2 and the Monthly
Summary Waste Flow Table is shown in Appendix L. Whenever possible, materials were reused
on-site as far as practicable.
Table 9-1 Summary of
Quantities of Inert C&D Materials
|
Type of Waste
|
Quantity
|
Disposal Location
|
|
Reused in this
Contract (Inert) (`000m3)
|
0.180
|
-
|
|
Reused in other
Projects (Inert) (`000m3)
|
0.802
|
1.
Lam Tei Quarry
2.
Eco Park K.Wah
Recycle Facilities
3.
Lung Kwu Tan Tailor Recycled Aggregates
4.
Liantang BCP Project
5.
TM-CLKL Contract 2 - Northern Connection
Sub-sea Tunnel Section Project
|
|
Disposal as Public
Fill (Inert) (`000m3)
|
2.000
|
Tuen Mum Area 38
|
Table 9-2 Summary
of Quantities of C&D Wastes
|
Type of Waste
|
Quantity
|
Disposal Location
|
|
|
0
|
-
|
|
Recycled
Paper / Cardboard Packaging (`000kg)
|
0
|
-
|
|
Recycled
Plastic (`000kg)
|
0
|
-
|
|
Chemical
Wastes (`000kg)
|
0
|
License Collector
|
|
General
Refuses (`000m3)
|
0.310
|
WENT
|
10.1.1
According to the approved EM&A Manual,
the environmental site inspection shall be formulated by ET Leader on weekly
basis to confirm the environmental performance of the construction site.
Findings / Deficiencies During
Reporting Period
10.1.2
In the Reporting Period, joint site
inspections to evaluate site environmental performance were carried out by the
RE, ET and the Contractor on 2nd, 9th, 16th, 23rdand 30th January 2018. No non-compliance was
noted but 1 observation and 4 reminders were recorded during site inspection. Moreover, ENPO/IEC has attended joint
site inspection on 30th January 2018.
10.1.3
The findings / deficiencies observed during
the weekly site inspection in the Reporting Period are listed in Table 10-1.
Table 10-1 Site
Observations for the Contract
|
Date
|
Findings / Deficiencies
|
Follow-Up Status
|
|
2 January 2018
|
Ÿ Nil
|
Ÿ NA
|
|
9 January 2018
|
Ÿ Sediment cumulated
inside the de-silting system should be cleaned more frequency and make sure
all water discharge from site should comply with license requirement. (Portion F)
|
Ÿ Not required for reminder.
|
|
16 January 2018
|
Ÿ Stagnant water should be
removed to prevent mosquito breeding. (TD1)
|
Ÿ Stagnant water cumulated
inside the pit was removed.
|
|
Ÿ The Contractor was reminded
to cover the opened cement bag with imprevious sheet to reduce dust
generation. (TD1
|
Ÿ Not required for reminder.
|
|
Ÿ The Contractor was reminded
to place the free-standing chemcial containers into drip tray to avoid land
contamination.
|
Ÿ Not required for reminder.
|
|
23 January 2018
|
Ÿ Nil
|
Ÿ NA
|
|
30 January 2018
|
Ÿ The contractor should review
the condition of the temporary drainage system before wet season.
|
Ÿ Not required for reminder.
|
10.1.4
No
outstanding deficiency remained to be rectified in previous Reporting Period
which presented in Table 10-2.
Table 10-2 Outstanding
Items in Site Inspection of previous Reporting Period
|
Date
|
Findings
/ Deficiencies
|
Follow-Up
Status
|
|
--
|
Ÿ NA
|
Ÿ NA
|
10.1.5
Air
quality mitigation measures such as watering of site area for 12 times per day
and covering of exposed slopes should be implemented during the construciton
period to reduce construction dust impact as recommended in the
EMIS.
10.1.6
Good site practice for daily housekeeping is
reminded. In addition, clean-up of the waste skips and wastewater treatment
system should be increased to ensure these facilities functional
and effective.
10.1.7
In addition, muddy water or other water
pollutants from site surface runoff shall not be discharged into public areas. Water quality mitigation measures to
prevent surface runoff into the public areas should be paid on special attention.
10.1.8
Stagnant water should be removed as
soon as possible after rain to prevent mosquito breeding on site.
Inspection Checklist for Vulnerable to
Contaminated Water Discharge
10.1.9
Following to the complaint about
discharge of milky water to Bufferfuly Beach on 2 September 2015. The Contractor proposed to carry out daily
inspection of wastewater treatment facilities, concerned discharge points,
drainage inlets and outlets during typhoon or wet season.
10.1.10
In addition, specific inspections would
also be conducted before and after adverse weather to ensure necessary remedial
works would be carried out timely. Should incidental contaminated water
discharge be found at the inlet of the associated drainage system, a specific
inspection of the relevant drainage pipes would be conducted for traces of
deposit, and follow up actions would be taken when necessary.
10.1.11
During
the dry season, the frequency
of inspection for
vulnerable to contaminated water discharge was reduced to once per week by the Contractor at January 2018. As requested by the EPD, the
associated inspection checklist should be presented in the Monthly EM&A
Report and it is shown in Appendix P .
11.1.1
In the Reporting Period, no summons and
prosecution under the EM&A Programme was lodged.
However, one (1) environmental complaint was received and lodged for the
Contract and six exceedance of the
environmental performance limit (6 Action Level) were recorded
for monitoring programme. Follow up actions have been undertaking
by the Contractor to resolve the deficiencies. The details of complaint are
listed below:-
l
30
January
2018 - A complaint was
received from the EPD on 30
January
2018 to complaint that “晚上12點或凌晨3點至5點，點解內河碼頭還有工程要做，不是晚上11點前應該不可發出噪音嗎？而且可以無限發光，已經是凌晨了有這需要嗎? 已經是凌晨了，為何開着咁多大光燈？至於在日頭觀察，為何內河碼頭及港珠澳大橋工程，不是應該把沙石灑水避免空氣污染嗎？為何沒有依程序灑水，令沙塵飄到屯門碼頭？還容一船船沙石飄揚？屯門碼頭空氣污染指數甚高，這就是原因.”
11.1.2
The investigation for the complaint was completed
and concluded that the complaint was not project related. The IR of the complaint is shown in Appendix O.
11.1.3
The statistical summary table of environmental
exceedance, complaint, summons and prosecution are presented in Tables 11-1, 11-2, 11-3 and 11-4.
Table 11-1 Statistical Summary of
Environmental Exceedance
|
Reporting Period
|
Environmental Aspect / Parameter
|
Environmental
Performance
|
Event Exceedance
|
|
Reporting Month
|
Previous Months
|
Cumulative
|
|
January 2018
|
Air Quality - 1-hr TSP
|
Action Level
|
6
|
29
|
35
|
|
Limit Level
|
0
|
2
|
2
|
|
Air Quality - 24-hr TSP
|
Action Level
|
0
|
3
|
3
|
|
Limit Level
|
0
|
3
|
3
|
Table 11-2 Statistical
Summary of Environmental Complaints
|
Reporting Period
|
Environmental Complaint Statistics
|
|
Frequency
|
Cumulative
|
Complaint Nature
|
|
Air
|
Noise
|
Water
|
Others
|
|
January 2018
|
1
|
10
|
3
|
1
|
6
|
2
|
Table 11-3 Statistical
Summary of Environmental Summons
|
Reporting Period
|
Environmental Summons Statistics
|
|
Frequency
|
Cumulative
|
Complaint Nature
|
|
Air
|
Noise
|
Water
|
|
January 2018
|
0
|
0
|
NA
|
NA
|
NA
|
Table 11-4 Statistical
Summary of Environmental Prosecution
|
Reporting Period
|
Environmental Prosecution Statistics
|
|
Frequency
|
Cumulative
|
Complaint Nature
|
|
Air
|
Noise
|
Water
|
|
January 2018
|
0
|
0
|
NA
|
NA
|
NA
|
11.1.4
In the
Reporting Period, no warning letter related to environmental issue was
received from the EPD or HyD.
12.1.1
The environmental mitigation measures that
recommended in the Environmental Mitigation and Enhancement Measures Implementation
Schedule (EMIS) for in the Project EM&A Manual covered the issues of air quality, cultural heritage, ecology, landfill gas hazard, landscape & visual, noise,
water and waste. The updated
EMIS for the Contract is shown in Appendix M.
12.1.2
The Contractor shall implement the required
environmental mitigation measures according to the EM&A Manual as subject
to the site condition. The environmental mitigation measures implemented by the
Contract in this Reporting Period are summarized in Table 12-1 and Appendix M.
Table 12-1 Environmental
Mitigation Measures
|
Issues
|
Environmental Mitigation Measures
|
|
Air Quality
|
· Maintain damp / wet surface
on access road
· Keep slow speed in the sites
· All vehicles must use wheel
washing facility before off site
· Sprayed water during rock breaking
works
· During transportation by truck, materials loaded lower
than the side and tail boards, and covered before transport
· Compacted all soil stockpiles
· Part of the exposed slopes covered geotextile net
|
|
Cultural Heritage
|
· Set a buffer zone between the working area
and the Grave
· All construction materials and equipment store far from
the Grave
· Inspection the Grave to ensure provision mitigation
measures effective
|
|
Ecology
|
·
Wire fencing provided for
temporary protect Pitcher Plants
·
Undertake weekly inspection
of Pitcher Plants
|
|
Landfill Gas Hazard
|
·
Landfill Gas
measurement undertake during trench excavation
|
|
Water Quality
|
· Temporary drainage system
provide for surface runoff prevent discharge to public area
· Wastewater to be treated by
sedimentation tank before discharge.
|
|
Noise
|
· No
operation of powered mechanical equipment is allowed during restricted hours
from 19:00 to 07:00 on the following day and whole day during Sunday and
public holiday without construction noise permit (CNP)
· Keep good maintenance of
plants
· The noisy plants or works provide
mobile noise barriers
· Shut down the plants when
not in use
|
|
Waste and Chemical
Management
|
· On-site sorting prior to
disposal
· Follow requirements and
procedures of the “Trip-ticket System”
·
Predict required quantity of concrete accurately
· Collect the unused fresh concrete at designated
locations in the sites for subsequent disposal
|
|
General
|
· The site was generally kept
tidy and clean.
|
12.2.1
Construction activities as undertaken in the
coming month for the Contract lists below:
Ÿ
Site Formation –
Earthwork at 5SE-D/C170; surface drainage on Slope C, D & E and Portion H;
Ÿ
Parapet construction for
Retaining Structure RW_A and Bridge G2;
Ÿ
Temporary Traffic
Arrangement at Lung Mun Road and Lung Fu Road;
Ÿ
Toll Collector Subway
& Associated Works;
Ÿ
Toll Booth Canopy
Construction;
Ÿ
Road pavement works at
+19mPD platform ;
Ÿ
Bridge G1C and H1C by Formtraveller at Portion F;
Ÿ
Bridge G1b at Portion F;
Ÿ
Vehicular Underpass –
Cable Trough construction and partition wall construction;
Ÿ
Retaining Structure TP_G
at Portion H;
Ÿ
Excavation and lateral
Support of Construction of Retaining Wall TP_G;
Ÿ
Backfilling Work of
Existing Sewer Culvert between MH1 to MH8;
Ÿ
Installation of Glazed
Lift Shaft for Lift A ,B and footbridge;
Ÿ
Construction of Storage
Area at Retaining Wall B
12.3.1
Key environmental issues to be considered in
the coming month include:
Ÿ
Implementation of dust
suppression measures at all times;
Ÿ
Potential wastewater
quality impact due to surface runoff;
Ÿ
Potential fugitive
dust impact due to the dry/loose/exposure soil surface/dusty material;
Ÿ
Ensure dust suppression measures are
implemented properly;
Ÿ
Sediment catch-pits and silt removal
facilities should be regularly maintained;
Ÿ
Management of chemical wastes;
Ÿ
Site effluent discharge to the nearby nullah is prohibited;
Ÿ
Follow-up of improvement on general waste
management issues; and
Ÿ
Implementation of construction noise preventative
control measures
13.1.1
This is 39th monthly
EM&A report presenting the monitoring results and inspection findings for
the period of 1 to 31 January 2018.
13.1.2
There
were six exceedances of 1-hour TSP measurements
trigger in Action Level at ASR5 on
13,
16 and 22 January 2018.
NOEs were issued to notify all relevant parties. Investigation reports (IR) for the
exceedances prepared by the ET were endorsed by IEC and the IRs revealed that the
exceedances were not project related.
13.1.3
In last Reporting Period, the investigation reports (IR) for the exceedance
of 24-hour TSP was recorded
on 29 December 2017 was submitted by ET. After the investigation, it is concluded that the exceedence
was not project related.
13.1.4
Site inspection for landscape and visual was conducted
on weekly basis by the Landscape Architect to ensure the compliance of the
intended aims of the mitigation measures.
Most of the landscape works such as planting was not yet commenced.
13.1.5
Establishment period for the pitcher plants was completed
at the end of September 2016, the join site completion of Establishment period
visit with AFCD was undertaken on 23 September 2016 and the final pitcher plants
report was submitted to AFCD on early December 2016. Therefore
after 23 September 2016, only the integrity of the protection fence was checked
to fulfil the EIA requirement. During each inspection, the protection mitigation measures were
checking at the final receptor area to make sure no site activities was
undertaken inside the protection zone. Besides, no construction activities were observed to be carried
out at the surrounding of the final receptor area. The condition of chain link fence is
good and no repair or maintenance is required.
13.1.6
Landfill
gas monitoring was conducted at the TD1 works area. The
monitoring results shown no exceedances were triggered.
13.1.7
In the Reporting Period, one (1) environmental complaint was received
from EPD on 30 January 2018 regarding
construction noise and light nuisance created at River Trade Terminal during mid-night. The complainant also
complaint dust issue at River Trade Terminal. The
investigation report (IR) has been submitted by ET and concluded that the complaint was not project
related.
13.1.8
No notifications of summons, or
successful prosecution were received by the Contractor during the Reporting
Period.
13.1.9
In the Reporting
Period, joint site inspection by the
RE, ET and the Contractor was carried out on
2nd, 9th, 16th, 23rdand 30th January 2018 and the IEC has attended the joint site
inspection on 30th January 2018. No non-compliance was
recorded during the site inspection but 1 observation and 4 reminders were recorded.
13.1.10
In the Reporting Period,
Grave G1 of inspection was undertaken on 2nd, 9th, 16th, 23rdand 30th January 2018. Based on the inspection findings,
the cultural heritage mitigation measures as implemented by the Contractor are
fully complied with the EM&A Manual requirements.
13.2.1
During
dry season, air quality mitigation measures such as watering of site area for
12 times per day and covering of exposed slopes should be fully implemented to
reduce construction dust impact as recommended in the EMIS.
13.2.2
Moreover, muddy water or other water
pollutants from site surface runoff into the public areas will be key
environment issue. Special
attention should be paid on the water quality mitigation measures to prevent
surface runoff flow to public area.
13.2.3
Stagnant water should be removed as soon as
possible after rain to prevent mosquito breeding on
site.
